ZALMAN Computer Cooling System
-
Type / Purpose
Processor
-
Fan diameter
14cm
|
Description
Specifications
Expert Reviews

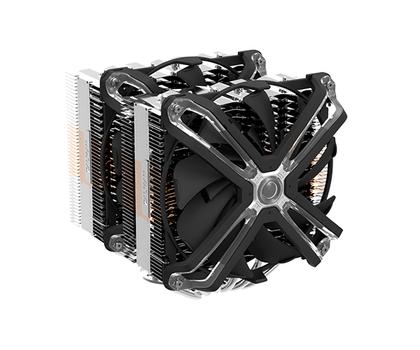

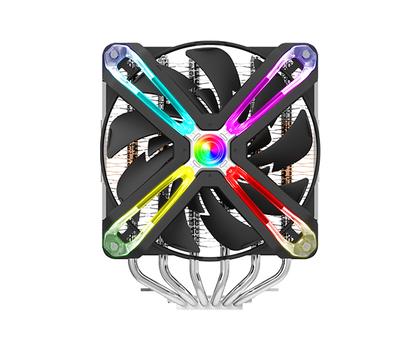

Zalman CNPS20X. Modell/Type: Kjøler, Viftediameter: 14 cm, Rotasjonshastighet (min): 800 RPM, Rotasjonshasrighet (max): 1500 RPM, Støynivå (høy hastighet): 29 dB, Maksimal luftstrøm: 61 cfm, Maksimalt lufttrykk: 1,1 mmH2O, Lagertype: Fluid Dynamic Bearing (FDB). Bredde: 170 mm, Dybde: 140 mm, Høyde: 165 mm. Produktfarge: Aluminium, Sort
| Egnet plassering | Prosessor |
| Modell/Type | Kjøler |
| Viftediameter | 14 cm |
| Støttede prosessorkontakter | LGA 1150 (kontakt H3), LGA 1151 (kontakt H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, AM4 |
| Kompatible prosessorserier | AMD A, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition, Intel® Core™ i9, Intel Core i9 Extreme Edition, Intel® Pentium® |
| Rotasjonshastighet (min) | 800 RPM |
| Rotasjonshasrighet (max) | 1500 RPM |
| Støynivå (høy hastighet) | 29 dB |
| Maksimal luftstrøm | 61 cfm |
| Maksimalt lufttrykk | 1,1 mmH2O |
| Pulsbreddemodulerings- støtte (PWM) | Yes |
| Lagertype | Fluid Dynamic Bearing (FDB) |
| Driftstemperatur (T-T) | -40 - 105 °C |
| Produktfarge | Aluminium, Sort |
| Materiale | Aluminium, Kopper |
| Antall vifter | 2 vifter |
| Antall varmerør | 6 |
| Belysningsdiode | Yes |
| Viftetilkobling | 3-pin + 4-pin |
| Sertifisering | CE |
| Nominell spenning | 12 V |
| Nominell linjestrøm | 0,28 A |
| Thermal Design Power (TDP) | 300 W |
| Bredde | 170 mm |
| Dybde | 140 mm |
| Høyde | 165 mm |
| Vekt | 1,3 kg |
| Viftedimensjoner (BxDxH) | 140 x 140 x 26 mm |
| Samsvarssertifikat | RoHS |
| Monteringssett | Yes |
| Skruer inkludert | Yes |
| Antall skruer | 8 |
| Vifte nominell spenning | 5 - 12 V |
| Termisk fett | Yes |
