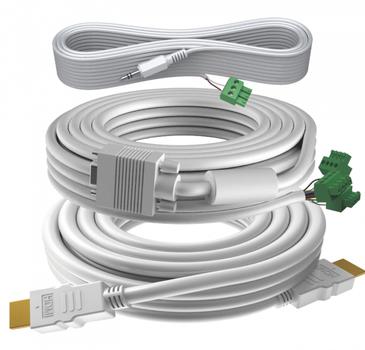

VISION Techconnect3 5m Cable Package

1 x VGA
White, Ferrite core to stop RF interference. A moulded connector on one end, and a male phoenix connector on the other end which can be plugged directly into the rear of module. Gold-plated male to male HD15 (15 pin) connector. Sheath PVC, outer diameter: 8.0 mm, Conductor thickness: 28AWG, Drain wire laid between aluminum mylar and braid, Al-Mg alloy wire overall, >65% coverage braided shield. Impedance: at 10MHz, 75Ω (coaxial cable), Resistance 20℃(Ω/1000m) 237.25.

1 x 3.5mm Minijack
High-grade white installation cable. A moulded connector on one end, and a male phoenix connector on the other end which can be plugged directly into the rear of a Techconnect faceplate module.

1 x HDMI
White, 4K compliant, High-Speed (Category 2) with Ethernet, HDMI 1.4, Gold-plated HDMI-A connectors, Sheath: outer diameter: 9.5mm, Conductor thickness: ≤ 5 m 28 AWG (American Wire Gauge) / 10 m 26 AWG / 15 m 24 AWG. Sheath outer diameter: ≤ 5 m 7.3 mm (≤16.4 ft 0.29″) / 10 m 8.0 mm (32.81 ft 0.31″) / 15 m 9.5 mm (49.21 ft 0.37″).
