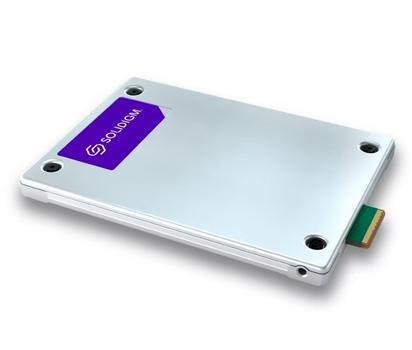

SOLIDIGM D5 Series D5-P5336 - SSD - Read Intensive - 7.68 TB - internal - E3.S - PCIe 4.0 x4 (NVMe)
You have to log in to shop/see prices.
|
|
SOLIDIGM D5 Series D5-P5336 - SSD - Read Intensive - 7.68 TB - internal - E3.S - PCIe 4.0 x4 (NVMe)
-
Read Speed
6.8GB/s
-
Write Speed
1.8GB/s
-
Interface
PCI Express 4.0
-
Form Factor
E3.S
-
SSD Capacity
7.68TB
|
D5-P5336 Series 7.68TB Generic No Opal
SBFPFABV076T001
Delivering massive efficiency improvements from core to edge, the D5-P5336 is a hyper-scalable, cost-effective solution for AI and data-intensive workloads to accelerate data no matter where it lives.
Specifications:
General
- Capacity 7.68TB
- Form Factor E3.S 7.5mm
- Interface PCIe 4.0 x4, NVMe
- Weight 90g +/- 10g
- Lithography Type 192 L QLC 3D NAND
- Use Conditions Server/Enterprise
Performance
- Sequential Bandwidth - 100% Read (up to) 6800 MB/s
- Sequential Bandwidth - 100% Write (up to) 1800 MB/s
- Random Read (100% Span) 770000 IOPS (4K, QD256)
- Random Write (100% Span) 17900 IOPS (16K, QD256)
- Power - Active 15W
- Power - Idle 5W
- Latency - Random Read (typ.) 110μs (4K Blocks)
- Latency - Random Write (typ.) 50μs (16K Blocks)
- Latency - Sequential Read (typ.) 10μs (4K Blocks)
- Latency - Sequential Write (typ.) 15μs (16K Blocks)
Reliability
- Warranty Period 5 years
- Endurance Rating (Lifetime Writes) 0.42 DWPD (16K RW) / 5.92 PBW
- Mean Time Between Failures (MTBF) 2 million hours
- Uncorrectable Bit Error Rate (UBER) <1 sector per 10^17 bits read
- Vibration - Operating 2.17 GRMS (5 - 700 Hz) Max
- Vibration - Non-Operating 3.13 GRMS (5 - 800 Hz) Max
- Shock (Operating and Non-Operating) 1,000 G (Max) at 0.5 msec
- Operating Temperature Range 0 - 70°C
