| SPECIFICATION |
| Model |

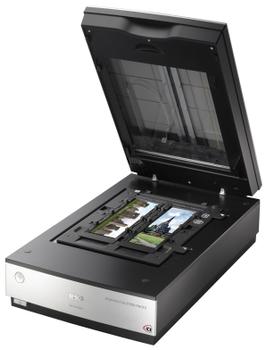

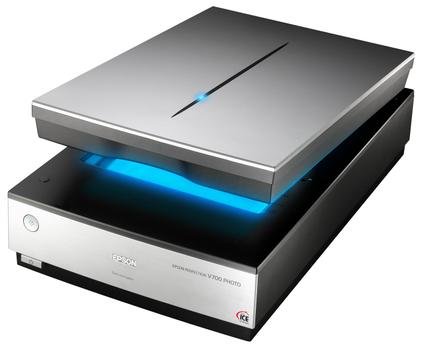

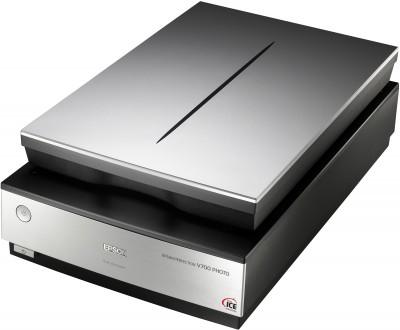

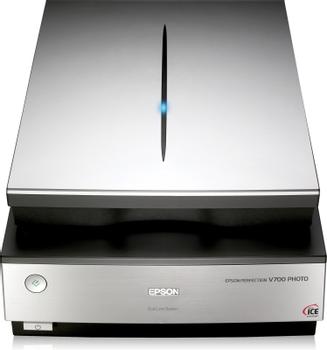

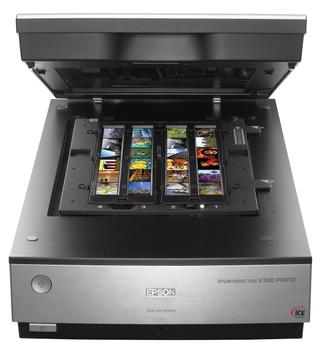

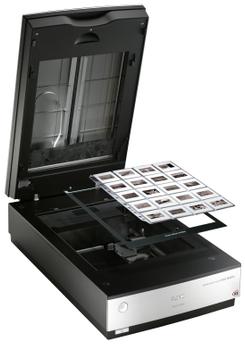

Epson Perfection V700 Photo |
| Scanner type |
Flatbed colour image scanner |
|
Optical resolution |
Super Resolution lens: 6400dpi x Sub 9600dpi (film holder scanning)
High resolution lens: 4800 x 9600 dpi (reflective and contact sheet scanning) |
| Optical density |
4.0 DMax |
| Document size |
216 x 297mm (A4, letter)
149 x 247mm (default and when using film holder)
35mm strip film 6 frames x 4
35mm mounted film 12 frames
120/220 film (max. 6 x 20cm) 2 frames
5 x 4" 2 frames
203 x 254mm (when using film area guide) |
|
Interface |
USB 2.0 (Type B receptacle connector x 1)
IEEE 1394 (6 pin connector x 1) |
| Configuration |
| Photoelectric device |
Alternate 6 lines color CCD with micro lens
4800 dpi at 122,400 pixel (20400 x 2 line x 3 colors)
6400 dpi at 113,280 pixel (18880 x 2 line x 3 colors) |
| Light source |
White cold cathode fluorescent lamp |
| Sub-scanning method |
Fixed document and moving carriage |
| Performance |
| Output resolution |
50 – 12800 dpi |
| Colours |
| Internal: |
48 bit (281.5 trillion colours) |
| Output: |
48 bit (281.5 trillion colours)
24 bit (16.7 million colours)
16 bit (65,536 greyscale levels)
8 bit (256 greyscale levels)
1 bit (monochrome) | |
| Scanning speed* Reflective Scanning |
| Monochrome |
A4 300 dpi - 11 Sec |
| 24 bit color |
A4 300 dpi - 14 Sec
A4 600 dpi - 25 Sec |
| Film Scanning |
| 35mm negative film |
2400 dpi - 47 Sec |
| 35mm positive film |
2400 dpi - 44 Sec |
| Functions |
| DIGITAL ICE Technologies, Grain Reduction, Dust Removal, Color Restoration, PRINT Image Matching™ II, Optimised Auto |
| Image Quality Enhancer |
Exposure, Unsharp Mask with Noise Reduction, De-screening with Document Type Optimiser, Tone Curve Adjustment with Histogram , Color Palette tool for Easy Color Fix |
| Easy Scanning |
1 Push Button, Stand-Alone Application And Scan To File Feature, Scan To Pdf Feature, Multi-Purpose User Interface, Multi-Document Auto Detection, Multi-Document Auto Cropping, Auto Skew Correction, Multi-Marquee, Film Scanning Thumbnail Preview |
| Supported platforms** |
| USB 1.1 |
Microsoft® Windows® 98 SE/ME/2000 Professional/XP Home Edition/XP Professional x64 Edition (pre-installed model or upgradeof Windows® 98/ME/2000 Professional/XP Home Edition/XP Professional pre-installed model) Mac OS® X 10.2 or later (SilverFast: Mac OS® 9.2 or later) |
| USB 2.0* |
Microsoft® Windows® XP Home Edition / XP Professional / 2000 Professional/ XP Professional x64 Edition (Pre-installed model or upgrade of Windows® XP Home Edition/ XP Professional pre-installed model) Mac OS® X 10.2.7 or later
*USB2.0 Host Driver by Microsoft is required |
| EEE 1394 (FireWire) |
Microsoft® Windows® Me/ 2000 Professional/ XP Home Edition/ XP Professional/ XP Professional x64 Edition (Pre-installed model or upgrade of Windows® Me/2000 Professional/ XP Home Edition/ XP Professional pre-installed model) Mac OS® X 10.2 or later (SilverFast®: Mac OS® 9.2 or later) |
| Remark: Epson Scan and SilverFast driver can run on Windows XP Professional x64 Edition. Some of the bundled application software may not be supported in Windows XP Professional x64 Edition. |
| Environmental conditions |
| Temperature |
5ºC to 35ºC (operating) |
| Humidity |
10% to 80% without condensation (operating) |
| Electrical specifications |
| Voltage |
(AC100V model) AC100-120V 50-60Hz
(AC200V model) AC220-240V 50-60Hz |
| Power consumption |
32W (operation)
19W (standby mode)
4W (sleep mode) |
| General |
| Dimensions (w x d x h) |
503 x 308 x 152.5mm |
| Weight |
approx. 6.6kg |
| Warranty |
1 year standard. Optional extension to 3 years
Warranty offers are not available in all countries. Please contact your local Epson representative. |
| |
|
*Scanning speed note: Scanning speed test results vary according to system configuration, dpi setting, and scan mode settings.
**To use the USB port, consult the documentation provided with your PC for further information about USB connectivity. Please note that errors may occur if non-standard cables or multiple hub connections are used.
DIGITAL ICE Technologies™ scan times are dependant on the amount of dust & surfaces defects being removed. In general, DIGITAL ICE Technologies™ scan times are at least 2x non-DIGITAL ICE Technologies™ scan times. DIGITAL ICE Technologies™ does not support traditional B/W nor Kodachrome films. |
