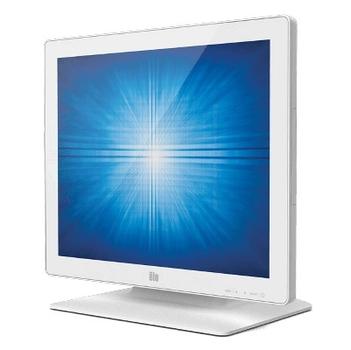

ELO 1523L INTELLIT PRO ZERO-BEZEL MULTI-T USB TCI ANTI-GLARE WHT IN MNTR
You have to log in to shop/see prices.
|
|
ELO 1523L INTELLIT PRO ZERO-BEZEL MULTI-T USB TCI ANTI-GLARE WHT IN MNTR
-
Size
15"
-
Resolution
1024 x 768
-
HD
XGA
-
USB-C
0
-
DVI
1
-
HDMI
0
-
Touchscreen
Yes
-
Speakers
Yes
-
Screen Shape
Flat
-
Height adjustment
No
-
Swivelling
No
-
Pivot
No
-
Usage
Personal display
|
1523L 15" Touchscreen Monitor PCAP White (Worldwide)
E336518
The Elo 1523L 15-inch standard format touchscreen monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1523L brings a clean, modern feel to any environment. The zero-bezel touchmonitor is available in both black or white with Elo’s industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
Specifications:
Enclosure Color
Touch Technology & Capacity
- SAW ZB (IntelliTouch® Surface Acoustic Wave) - Dual Touch
- PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
- 15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
Active Area
- 11.97" x 8.98" / 304.13 mm x 228.1 mm
Resolution
Other Supported Resolutions
- 1024 x 768 at 60, 65, 70 or 75 Hz
- 800 x 600 at 56, 60,75 Hz
- 720 x 400 at 70 Hz
- 640 x 480 at 60,75 Hz
Viewing Angle
- Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
Number of Colors
Brightness (typical)
- LCD panel: 300 nits
- IntelliTouch ZB: 270 nits
- PCAP: 270 nits
Response Time-total (typical)
Contrast Ratio
Touch Interface
On Screen Display
- Controls (side): Menu, Up, Down, Select
- Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults
- Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
- Lockouts: OSD, Power
USB Ports
- 2 peripheral ports (USB Interface)
Speakers
Video
- Analog VGA on Female DB-15 connector
- Digital DVI on Female DVI-D, Dual-Link connector
- Digital HDMI type A Receptacle
- Input Video Horizontal Sync frequency range: 31.5 – 80KHz
- Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
Power
- Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
- Monitor input power signal specifications: 12VDC +/- 5%
- Adapter input connector: IEC 60320 C14
- Adapter input voltage range: 100-240VAC, 50/60Hz
Power Consumption (Typical)
- Monitor + AC/DC adapter
- ON: 10.5W
- SLEEP: 1.3W
- OFF: 0.2W
Monitor Dimensions (with Stand)
- 14.1" x 7.84" x 12.53" / 358.1mm x 199.1mm x 318.5mm
Shipping Box Dimensions
- 17.48" x 14.88" x 8.31" / 444 mm x 378 mm x 211 mm
Weight (Unpackaged)
Weight (Packaged)
Operating Temperature
- 0°C to 40°C / 32°F to 104°F
Storage Temperature
- -20°C to 60°C / -4°F to 140°F
Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
Sealability
- Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
- 50,000 hours demonstrated
Stand Options
Mounting Options
- VESA 4-hole 75mm mounting interface on rear of unit
- 3-hole threaded mounting on bottom of stand
- See dimensional drawings for details
Other Features
- 2 stage DPMS
- VESA DDC Plug and Play
- Security lock receptacle
Warranty
What's in the Box
- 1523L Touchmonitor
- Quick Install Guide
- 50W Power Brick, power cable
- IEC 60320-C13 to NA/EU plug
- DVI-D cable
- VGA cable (DB-15 male to DB-15 male)
- USB cable (Type A plug to Type B plug)
- Audio cable
- Stand base assembly
- Filler Plate
- HDMI cable
- EEI Label
