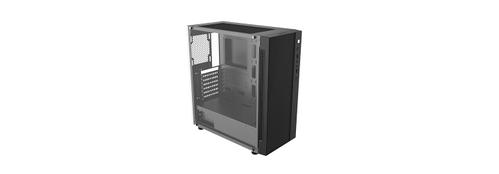

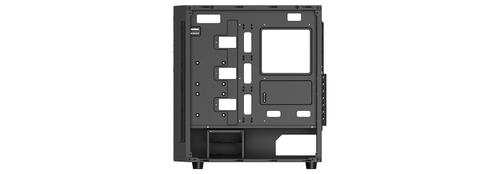

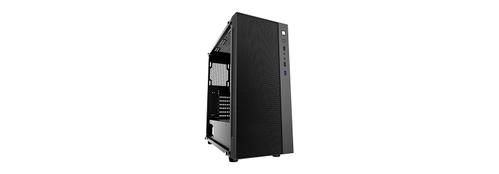

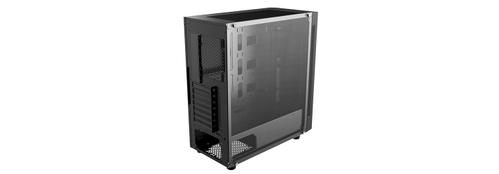

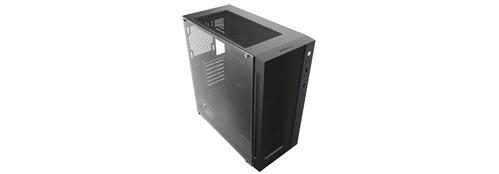

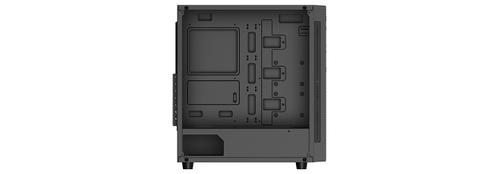

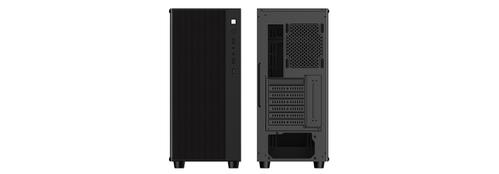

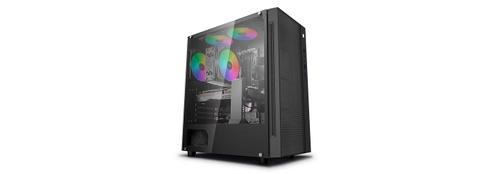

DEEPCOOL Matrexx 55 Mesh Midi Tower
You have to log in to shop/see prices.
|
|
DEEPCOOL Matrexx 55 Mesh Midi Tower
SKU:
DP-ATX-MATREXX55-MESH
-
Power supply
0W
-
Type
Midi Tower
-
Color
Black
|
Description
Specifications
MATREXX 55 MESH
DP-ATX-MATREXX55-MESH
Features:
- A compact ATX computer case supports motherboards up to E-ATX.
- With a meshed front panel, the intake channel provides abundant air flow for your system to breath and keep your entire build at a steady, sustainable temperature.
- Full sized 4mm thickness, tempered glass side panel gives the case a unique look and perfectly show off your inner structure.
- Supports installation of 120/140/240/280/360mm radiator liquid cooling system at the front, 120/140/240/280mm radiator liquid cooling system on top and 120mm radiator liquid cooling system at the rear.
- Supports 370mm (Max) long Graphic Card installation.
- Optimized airflow is guaranteed with large air intakes on two sides of the front panel, keeping your components cool
- The 210mm wide tower compartment with 23mm clearance is perfect for cable management
- A magnetic dustproof net on top and dust-filter in the front and bottom
Specifications:
|
Motherboard |
Mini-ITX/Micro-ATX/ATX/E-ATX |
|
Case Type |
Middle Tower |
|
Materials |
ABS+SPCC+Tempered Glass |
|
Product Dimensions |
440X210X480mm |
|
Carton Dimensions |
523X277X514mm |
|
Net Weight |
6.6Kg |
|
Gross Weight |
7.6Kg |
|
5.25" Drive Bays |
0 |
|
3.5" Drive Bays |
2 |
|
External 3.5'' Drive Bays |
0 |
|
2.5" Drive Bays |
4 |
|
I/O Ports |
USB2.0×2、USB3.0×1、Audio×1、Mic×1 |
|
Expansion Slots |
7 Slots |
|
Power Supply Type |
ATX PS2 （Length less than 170mm） |
|
Cable Management |
23mm clearance |
|
CPU Cooler Height Limit |
168 mm |
|
VGA Length Limit |
370mm |
|
Cooling Fans Support |
Optional: Front:140mm×3/120mm×3; Top:140mm×2/120mm×2; Rear:1×120mm; Pre-installed:noner |
|
Liquid Cooler Support |
Front:120/140/240/280/360mm;Top:120/140/240/280mm; Rear:120mm |
|
EAN |
6933412714057 |
|
P/N |
DP-ATX-MATREXX55-MESH |
| Formfaktor | Midi Tower |
| Modell/Type | PC |
| Materiale | Akrylonitril-butadien-styren (ABS), SPCC, Herdet glass |
| Produktfarge | Sort |
| Støttet systemdisk formfaktorer | ATX, EATX, Micro ATX, Mini-ITX |
| Antall 3.5" bays | 2 |
| Antall 5.25" bays | 0 |
| Antall 2.5" bays | 4 |
| Antall utvidelsesspor | 7 |
| Siderute | Yes |
| Egnet til | Spilling |
| Herdet glasspanel/herdede glasspaneler | Yes |
| Antistøvfilter | Yes |
| Forbedret kabelføring | Yes |
| Tilbakestillingsknapp | Yes |
| Av/på-knapp | Yes |
| Maksimal høyde CPU-kjøler | 16,5 cm |
| Maksimal lengde grafikkort | 37 cm |
| Strømforsyning medfølger | No |
| Strømforsyningens plassering | Bunn |
| Støttede formfaktorer strømforsyning | ATX, PS2 |
| Antall USB 2.0-porter | 2 |
| Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter | 1 |
| Antall USB 3.2 Gen 2 (3.1 Gen 2)Type-C-porter | 0 |
| Antall USB 3.2 Gen 2 (3.1 Gen 2) Type-A-porter | 0 |
| Lydkontakter | Ja |
| Lydutgang | Ja |
| Maksimale frontvifter | 3 |
| Frontviftediameter som støttes | 120,140 mm |
| Antall bakvifter som støttes (maks.) | 1 |
| Bakre viftediametere som støttes | 120 mm |
| Antall toppvifter som støttes (maks.) | 2 |
| Toppviftediametere som støttes | 120,140 mm |
| Kapasitet for flytende nedkjøling | Yes |
| Støttede radiatorstørrelser foran | 120,140,240,280,360 mm |
| Støttede radiatorstørrelser bak | 120 mm |
| Støttede radiatorstørrelser øverst | 120,140,240,280 mm |
| Støttede HDD-størrelser | 2.5,3.5" |
| Bredde | 210 mm |
| Dybde | 435 mm |
| Høyde | 478 mm |
| Vekt | 6,59 kg |
| Pakkebredde | 277 mm |
| Pakkedybde | 523 mm |
| Pakkehøyde | 514 mm |
| Pakkevekt | 7,6 kg |
| Kabelhåndteringsklarering | 2,3 cm |
| Tykkelese på herdet glasspanel | 4 mm |
