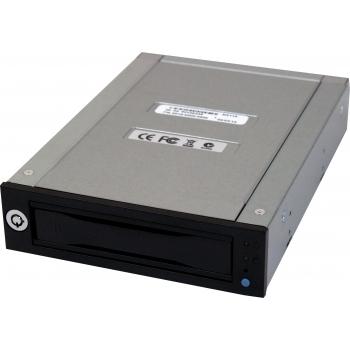

CRU-DATAPORT DX115 6G, Black, Grey, White,
You have to log in to shop/see prices.
|
|
CRU-DATAPORT DX115 6G, Black, Grey, White,
-
Disk Interface
SAS, SATA
-
Installed
0GB
-
Max Disks
1
-
RAID
No
-
Type
Internal
-
Disk Size
3.5"
|
Description
Specifications
Data Express® DX115 SAS/SATA 6G
Removable Hard Drive Enclosure
- Supports 2.5" or 3.5" SAS or SATA Drives
- SAS Receiving Frame is Compatible with SATA Drive Carrier
- Reliable Steel Construction
- Drive Carrier Key Lock and HDD Activity Indicator
The Data Express DX115 6G is a compact, rugged, drive carrier and receiving frame for internally mounting 2.5" or 3.5" form factor drives into any a 5.25" peripheral bay. The DX115 6G receiving frame offers 6 Gbps performance while still utilizing the same DX115 carrier as the previous 3 Gbps frame. This allows backwards compatibility with 3G HDD as well as the opportunity to take advantage of 6 Gbps speeds when used with a 6G drive, frame and host configuration. The DX115 removable enclosures are designed specifically to accommodate a variety of the latest PC chassis bay dimensions.
- Compact enclosure with uniquely-centered drive carrier
- Supports SAS and SATA 6 or 3 Gbps drives and operation
- SAS receiving frame is downward-compatible with SATA drive carrier
- Hot swappable
- Drive carrier key lock
- Drive spin/power up/down button
- Power, spin & fan failure indicator
- Drive activity indicator (system-dependent)
- "Soft Start" circuitry & anti-static device protection
- Cable-less drive connector
- 25K mating connector(s)
- Supports 2.5" and 3.5" drives
- Cooling fan
- Mounting hardware included
| Part Number |
Description |
Shipping Weight |
UPC Number |
| 6616-6500-0500 |
DX115 Complete Assembly, SAS/SATA 6 Gbps, RoHS, Black |
4 lbs. |
673825016688 |
| 6607-7100-0500 |
DX115 Carrier Only, SAS/SATA, RoHS, Black |
2 lbs. |
673825412138 |
| 6618-6500-0500 |
DX115 Frame Only, SAS/SATA 6 Gbps, RoHS, Black |
2 lbs. |
673825017340 |
| 5120-8050-00 |
DX115 Bay Cover, Plastic |
1 lbs. |
673825418239 |
| Storage drive size | 3.5" |
| Number of storage drives supported | 1 |
| Støttede lagrings-grensesnitt | SAS, SATA |
| Antall USB 2.0-porter | 1 |
| Produktfarge | Svart, Grå, Hvit |
| Antall vifter | 1 |
| Ekstern strømadapter | Yes |
| Bredde | 148 mm |
| Dybde | 205 mm |
| Høyde | 41 mm |
